Intro

As are others of you, I was frustrated at my inability to control the AC on my own. Most

specifically I was annoyed that I couldn't have the defrost on without the AC. I wanted better

control of the air conditioning. So, I set about to change it.

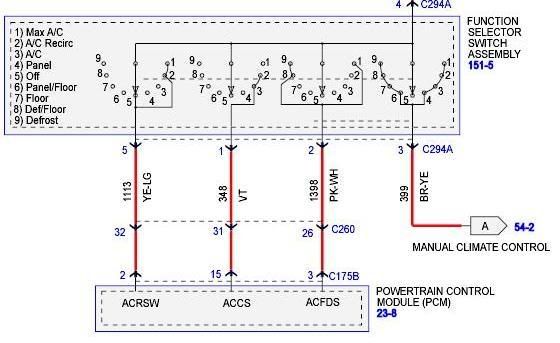

The first step was to learn the operation of the controls. I got the schematic, and determined

the values of the individual control wires. The important part of the schematic are shown below.



The full schematic page can be found at:
http://i34.photobucket.com/albums/d1...ematicFull.jpg

If you study the control schematic, you will see that there are three signals that are routed to

the AC system. They are: ACRSW, ACCS, and ACFDS.

ACRSW is connected (to 12v) when the switch is at: Off, Max AC, AC Recirc. This signal controls

the recirculate ability of the system.

ACCS is connected when the switch is at: AC Recirc, AC. This corresponds to the "green" AC mode

where the engine is not forced on.

ACFDS is connected when the switch is at: Max AC, Def/Floor, Defrost. This corresponds to the AC

mode where the engine is forced to run.

Given this information, I set about creating my AC control. Now it should be noted that you

could simply put a switch on the ACCS and ACFDS control signals, and connect them to 12v. This

would be far easier than what I set about doing. Most of the reason for my extra work is that I

wanted the system to fit without looking out of place.

2005 Ford Escape Hybrid - Titanium Green, 4WD, Appearance Pkg, Leather, Nav System

Switch Modification / Design

For my control I decided to add a console switch since I had a blank to the right of the SET

button. To do this I ordered a second rear window defrost button. This was part #

5L8Z-18578-BAA. This part looks like:



Interestingly, it was not identical to my existing rear window defrost button, but was close

enough so I wasn't worried about it.

When pulled apart, this switch looks like this:



The first thing I did was to set about changing the graphic on the switch. This process envolved

me using rubbing compound to remove the old graphic.



Since it would be tedious and boring to remove this by hand, I attached a q-tip to my drill, and

used it with the rubbing compound to remove the graphic.



The end result was this:



Now I needed to put my graphic onto the switch. I looked at a bunch of options, but decided to

go with the simple "AC" because it was going to be the easiest to apply, and because it would

make sense to anyone. To do this, I printed AC onto a mailing label (in a bunch of different

fonts so I could see which I wanted), and then cut out the AC of my choice.

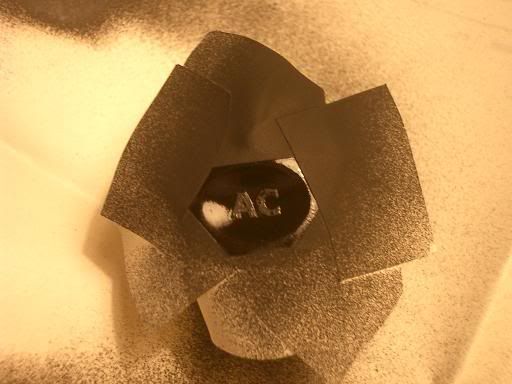

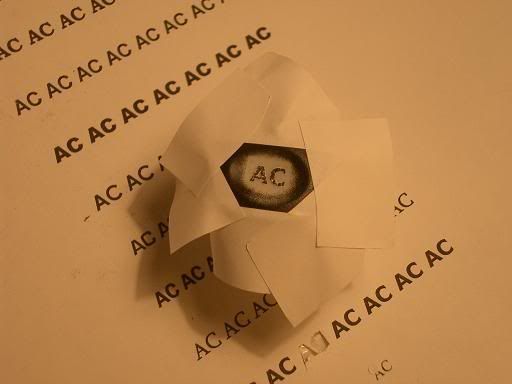

Next, I applied the sticker to my modified switch, and them sprayed it with matte black paint.





After removing the sticker, it looked like this:



To finish it, I used a little rubbing compound to smooth it out, and then sprayed it with a clear

coat with a matte finish to give it better durability.

Now that I had the switch externally finished, I needed to get my controls designed.

2005 Ford Escape Hybrid - Titanium Green, 4WD, Appearance Pkg, Leather, Nav System

Circuit Design

I decided I wanted the functionality to be, Press once, and the AC turns on in Green mode. Press

again, and it comes on in normal mode. I wanted the feedback to be a green light for the green

mode, and a red light for the normal mode. Pressing the switch again causes the AC to turn off.

I thought of a number of ways to do this, but settled on the easiest for me. This was to use a

small microprocessor in the circuit. There are certainly other ways to do this, and all I am

doing is switching 12v to the signals ACCS and ACFDS at the appropriate times.

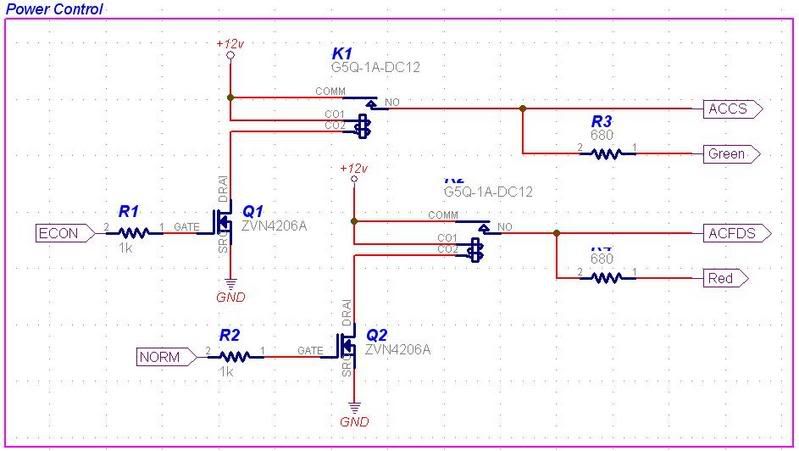

The schematic consists of three parts: The logic control, the power control, and the power

supply. These are shown below.

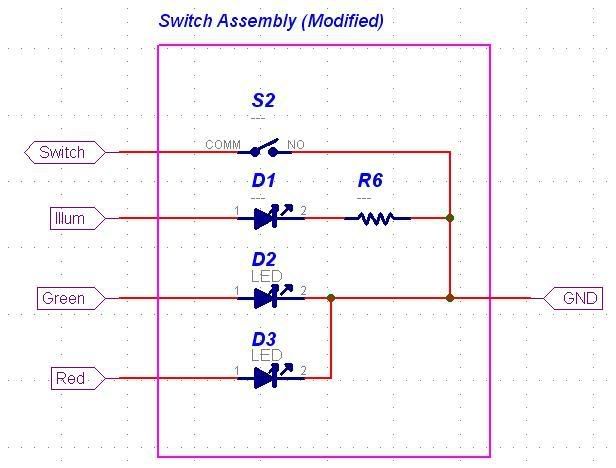

I'll get to what these do in a second, but they also required a modification to the physical

switch. The modified switch schematic is shown next.



Ok, the schematic is fairly simple. In the logic section, the processor (ATtiny15L) simply takes

the switch input, and creates two outputs for ACCS and ACFDS, but are called Econ and Norm at

this point. These signals are used to enable or disable the relays in the Control schematic. It

is the relays that connect 12v to the signals ACCS and ACFDS. Also off of the relay output is

the drive signal for the feedback LEDs.

The final portion of the schematic is simply here to provide power for the processor. It

converts 12v into 5v.

The modified switch now has two LEDs (Red and Green) for feedback, but still has the illumination

LED so you can see it when the lights are on at night.

2005 Ford Escape Hybrid - Titanium Green, 4WD, Appearance Pkg, Leather, Nav System

Circuit Build

Once complete, the circuit looked like:



The modification of the switch was fairly difficult. Modified it looks like like:







You can imagine that hand soldering SMT parts wasn't the easiest thing ever. But it was required

to get the new Red/Green LED in the only place it could go and still show through the indicator

window.

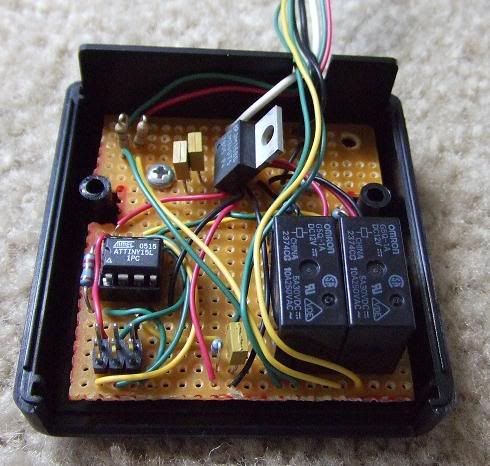

I put the control circuit into a case.

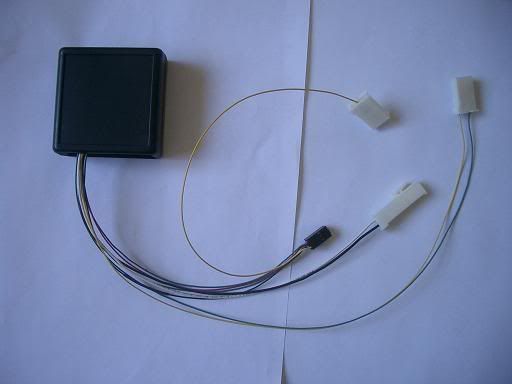

When enclosed, it looked like this:



You should note that I used connectors to attach the new control box into the AC system. This is

really because I like being able to remove my modifications. This makes it very easy.

Now it's time for the install.

2005 Ford Escape Hybrid - Titanium Green, 4WD, Appearance Pkg, Leather, Nav System

Install

First, I removed my radio. It is helpful if you put a rag over the gear shifter since it is

helpful to rest the radio on something when unplugging the connectors.



Second, you pull off the center console. This is held on at the four corners, you can feel the

connect points by reaching in through the radio hole. Pressing out on these points made it

easier for me to remove the console. You will also note that I have a cloth below the console.

This will keep you from scratching the plastic below the console.

Removing the blank switch is accomplished by simply pushing on it from the back. It will pop

right out. You should notice that the blank is keyed, and not all switches can fit into this

hole.



To get my AC switch to fit, I modified the blank spot with an extra keying slot as follows:



Now the switch will slide right in. Don't actually click it in yet as they are much harder to

get out than the blanks.



Now we need to put the connectors onto the various signals. This is mostly splicing into

signals, but you do need to cut a couple of wires and solder some connectors on.

I recommend using your camera liberally so you know how to put everything back in its proper

place. Since I had to disconnect everything from the console, it was a wise move.

First I connected power and ground.



You can see that these are connected to a black wire (GND), and Brown-Yellow for power. The

power wire is hot only when the Climate Control selector is not set to OFF. This wire can be

seen in the partial control schematic of the function selector switch. Using this power ensures

that no power will be put on the ACCS and ACFDS lines when OFF is selected on the control.

Next I spliced into the Cluster Illumination power. This wire is Light Blue-Red on the existing

rear window / defrost switch per the car schematics.



Finally, I had to cut the ACCS and ACFDS lines. In this picture I have cut the wires, and

installed the connector. I also put shrink wrap around any exposed wires.



The ACCS wire is Violet, and the ACFDS wire is Pink-White per the schematic.

Also worth noting in this picture is that I have connected the wires back to the original wires.

Like I mentioned earlier, I like being able to back out my changes, so for this mod I simply need

to connect these two wires to the connector.

Now I must mount the control box. I used Velcro Extreme to attach the box to the frame. Fairly

straight forward, and easy to remove.



Now it is a matter of connecting the connectors, and putting the center console back together.

This next picture shows the console back together, and my new switch hanging out. It is

important to have enough wire on this connector since it is harder to connect than the others.



You can see that I didn't take my own advice about protecting the plastic below the console.

They are my scratches of shame.

Then slip the switch back in the hole.



Finally, put the radio back in, and you're done!

2005 Ford Escape Hybrid - Titanium Green, 4WD, Appearance Pkg, Leather, Nav System

Finished Product

Here are some pics of the finished product.

Economy AC Mode



Normal AC Mode



Switch Illumination




I suppose if you read through the entire thing, you will note that I glossed over a few things

(such as the schematic design). If you want to know about something, just ask!

Enjoy,

salsbr
